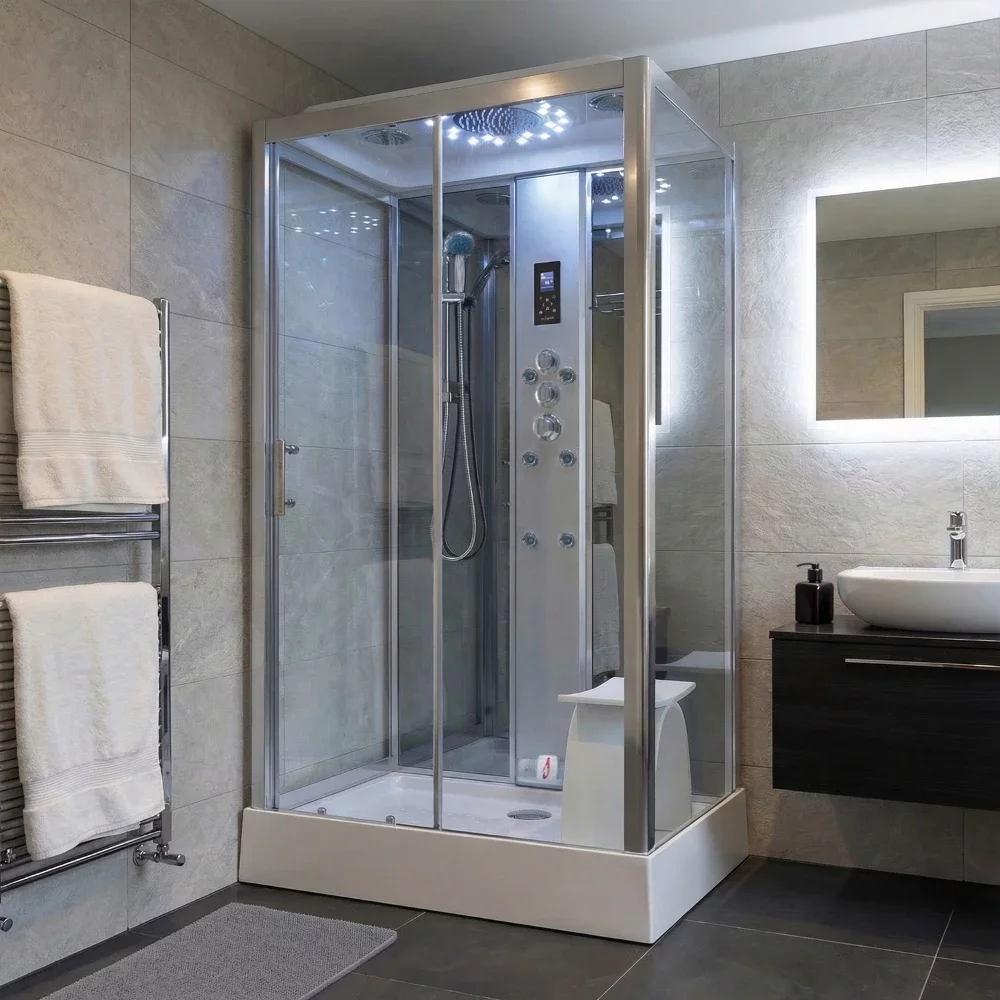

Insignia Platinum Rectangular Steam Shower Enclosure 1150mm x 850mm

Designed with a wider rectangular footprint, the Insignia Platinum 1150mm x 850mm steam shower enclosure provides additional internal space while maintaining a clean, straight-edged layout suited to wall-aligned bathroom installations. Its form factor makes it a practical option where a quadrant enclosure is not required, offering a more linear aesthetic and efficient use of space.

The enclosure is finished in chrome and constructed using 6mm clear tempered glass with mirror back panels as standard, helping to reflect light and enhance the sense of openness within the cabin. A LeakFree reinforced tray forms the base of the unit, supporting effective drainage and stable installation, while the QuickClick assembly system is designed to simplify the build process.

Powered by a fast-start 3kW steam generator with Dynamic Tri Jet technology, the system delivers consistent steam distribution throughout the cabin. The showering setup includes a stainless steel chrome finished ‘Hi-Flo’ overhead monsoon shower, a multi-functional hand shower on a riser rail, and six body jets for targeted coverage. Twin water valves enable simultaneous operation of multiple functions, complemented by integrated Bluetooth audio, FM radio, chromotherapy lighting, aromatherapy infusion, and ozone disinfection for a complete steam bathing experience.

Insignia Platinum Rectangular 1150mm x 850mm Steam Shower Features:

• Configuration: Rectangular steam shower enclosure
• Frame Finish: Chrome
• Glass Type: 6mm clear tempered safety glass
• Back Panels: Mirror finish as standard
• Steam System: Fast-start 3kW generator with Dynamic Tri Jet technology
• Aromatherapy: Patented AMI modular infusion system
• Overhead Shower: Stainless steel chrome finished ‘Hi-Flo’ monsoon rain shower
• Hand Shower: Multi-functional hand shower on riser rail with adjustable settings
• Body Jets: 6 high-flow body jets
• Water Control: Twin water valves allowing simultaneous use of functions
• Temperature Control: Thermostatic control with Vernet technology
• Tray: LeakFree reinforced polymer tray
• Assembly: QuickClick fast-build system
• Lighting: Chromotherapy LED lighting with 7-colour spectrum
• Audio: Bluetooth connectivity and FM radio with twin speakers
• Control Panel: ‘M’ touch digital control panel
• Sanitisation: Ozone disinfection system
• Doors: EasyGlide roller doors with magnetic seals
• Seating: Designer stone-finished stool included
• Storage: Toughened glass shelf
• Certification: CE Certified

Insignia Platinum Rectangular 1150mm x 850mm Steam Shower Specifications:

• Height: 2170mm
• Width: 1150mm
• Depth: 850mm
• Door Opening: 430mm
• Tray Height: 205mm
• Steam Generator Power: 3kW
• Glass Thickness: 6mm
• Minimum Water Pressure: 2.5 BAR
• Maximum Water Pressure: 3.4 BAR
• Electrical Requirement: 13Amp plug supplied

5 Year parts warranty upon registration
