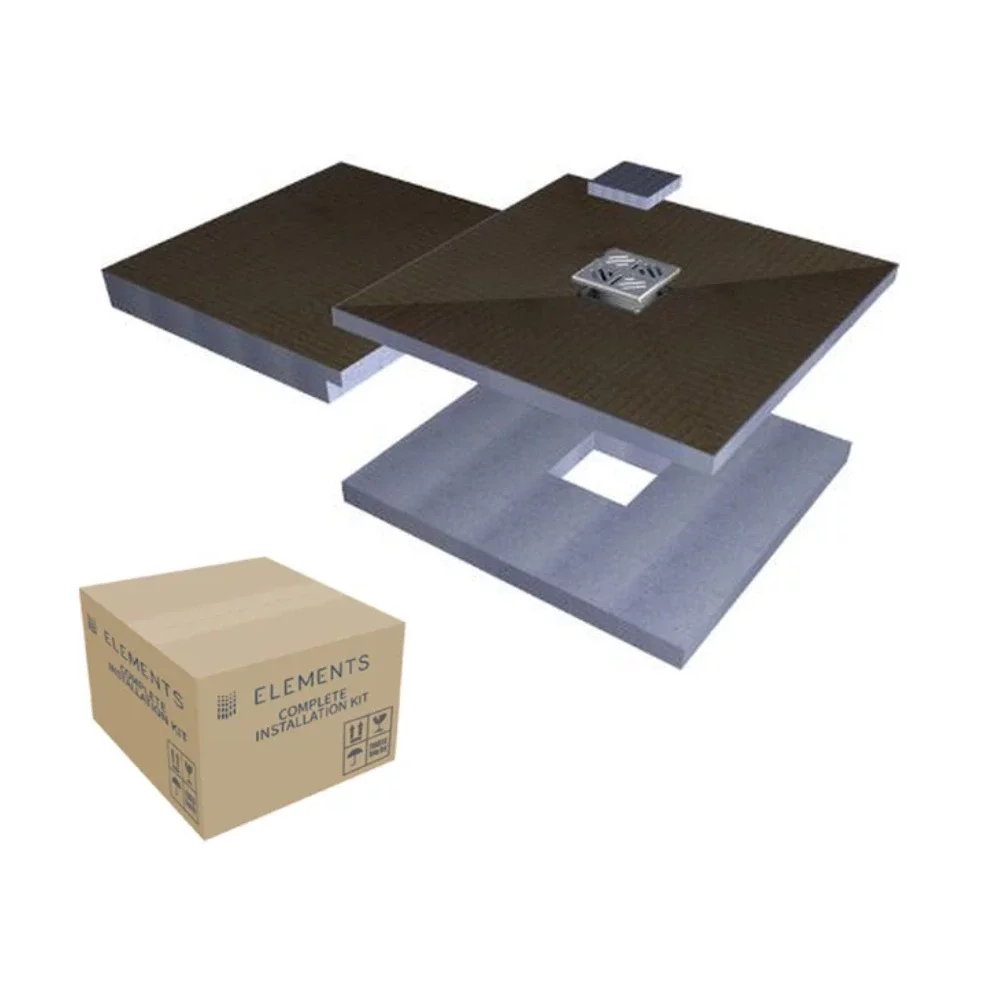

Abacus Raised Tray Wetroom Kit 4 1850 x 750 x 130/140mm

Installation Kit Included

Concept Raised Tray Kits 4: 130/140mm height x 1850mm length

The concepts 1 & 4 are designed for use where the customers cannot or chooses not to site the drain within the floor.
This system is also suitable where longer runs are required for drainage pipework not achievable within the floor, up to 1.5m from the waste to the soil pipe.
This typically will be used for apartment buildings or awkward joist locations on timber floors. Concepts 1 & 4 can be raised in height to increase drainage runs.

• Shower Tray - 900x750mm
• Center Drain
• Shower Tray Substrate - 950x750mm
• Extension Board with 10mm Fall - 950x750mm

Note:
Trays can be reduced in length and width by cutting with a hand saw. We do not recommend cutting more than 50mm off each side of the tray when reducing width.
Tray lengths can be extended by purchasing an additional extension kit.

Installation kit Includes

• Flexible Waterproof Tape Adhesive
• Wood Floor Primer
• Horizontal Shower Waste
• Board Fixing Adhesive
• Sealing & Mounting Adhesive
• Waterproof Joint Sealing Tape
• Waterproof Internal Corners
• Tile Guide
• Paint Brush
• Notched Trowel
• Protective Gloves

Date Sheet Click Here
