wedi Home Steam & Shower Room Complete Installation Kit

Wedi home stream room kit everything you need for your own steam room in one complete kit, just add tiles.

Imagine all the indulgence of a luxury spa in your bathroom, whenever you want it. That’s exactly what the Wedi Home Steam & Shower Kit provides.

Your wedi home steam & shower room is designed and manufactured in Germany to exactly the same specifications as our commercial spas, so you enjoy all the performance, quality and style usually reserved for luxury hotels and exclusive leisure clubs.

Yet it’s compact enough to take up no more space than a conventional shower unit.

You can personalise your wedi home steam & shower room from our range of natural stone effect Top Line panels adding further individual touches with your choice of tiles and shower brassware.

Then, just sit back and enjoy your relaxing steam therapy session as it soothes away the stresses of the day.

wedi quality, design and manufacture is renowned in the hospitality and leisure industries. Those same high standards are found in every part of the wedi home steam and shower room, guaranteeing a seamless fit and impeccable bathroom styling

Please note: This is a customizable product. When placing an order for this set, we will need to contact you regarding various options available before placing the order with the manufacturer.

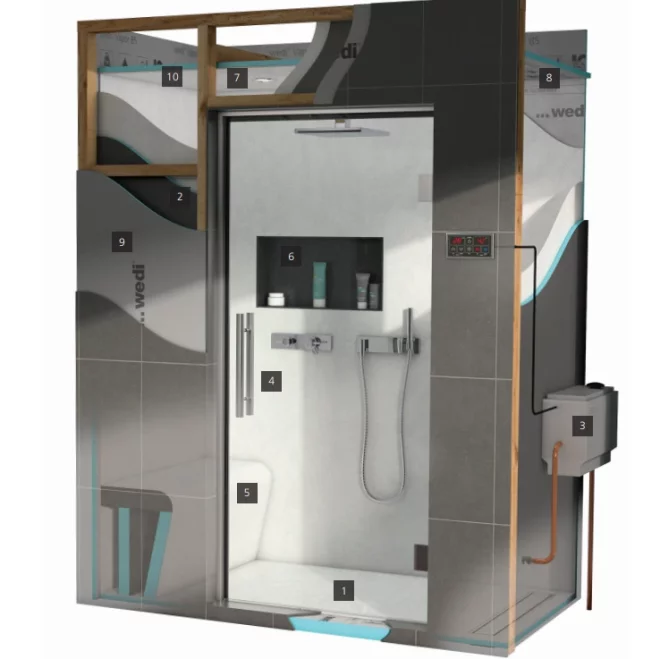

Key Elements & Parts as shown on Drawing of wedi Steam Room Kit

1. wedi Fundo Riolito neo tray. Includes an 800mm linear drainage channel alongside the wall with pre-defined even gradient.
2. wedi Vapor 85. A special building board with a factory applied vapour membrane barrier for use in areas with high levels of humidity.
3. Steam generator. Efficient, economical steam generating technology with control panel and two years’ full warranty. Certified to the highest safety standards.
4. Doors. Stylish and maintenance-free. Supplied with air humidity-resistant aluminium chrome finish frame and 8mm glass.
5. Sanoasa Bench. Offers plenty of seating room and a choice of finishes to create design individuality.
6. Niche. Practical and attractive, wedi Sanwell Niches provide valuable shelf space in the steam room cubicle. Easy to clean and 100% watertight, they are installed directly into the wedi building board panels.
7. Lights. 2 stylish, fire-rated LED downlights, IP65 rated for shower and steam areas.
8. Sealing and jointing. 610 adhesive, 620 sealant, tapes and gaiters from wedi ensure the reliable sealing of connections, butt joints and intersections.
9. wedi boards are ready for direct tiling or cladding onto.
10. Top Wall ceiling panel. A natural stone effect finish Top Wall ceiling panel is included as standard in Stone Grey

Wedi Home Steam Romm Kit includes

• 1 x Shower Tray wedi Fundo Riolito neo 1800 x 900 x 60mm - 800mm channel
• 1 x wedi Fundo channel drain horizontal DN50
• 1 x wedi Fundo channel drain substructure element
• 1 x wedi Fundo channel cover choice of standard plus or tileable (incl. channel frame) 800mm
• 1 x wedi Fundo edge strip 1800 x 40 x 100mm
• 5 x wedi Vapor 85 2500 x 900 x 20mm
• 2 x wedi Vapor 85 2500 x 600 x 20mm
• 3 x wedi building boards 2500 x 625 x 12.5mm
• 1 x wedi Sanwell niche 20/40 frame flange 12.5mm
• 1 x wedi Top Wall, 2500 x 900 x 6 mm, stone grey - natural stone look (ceiling)
• 1 x wedi Sanoasa bench Style 1, 2, 3 or 4
• 1 x Glass door 900mm wide steam room rated, Left or Right Handed
• 1 x Harvia steam generator HGX45
• 2 x Luceco down lights
• 1 x Pack 100 wedi washers stainless steel Ø 35mm
• 7 x wedi 610 adhesive sealant 310ml cartridge
• 1 x wedi joint reinforcement tape 25m x 125mm, self-adhesive
• 18 x wedi 620 vapour sealant
• 1 x wedi waterproof sealing tape 50m x 120 x 1mm
• 8 x wedi tools internal sealing tape corner, 120 x 120 x 60mm
• 2 x wedi sealing gaiter 50-70mm (for lights)
• 1 x wedi sealing gaiter 90-125mm (for ibox)
• 14 x Fixing sets / plates
• 1 x Promat heat plate 150 x 150 x 12mm

wedi is known across the UK and Europe as the leading designer and manufacturer of spa and wellness facilities for the most prestigious health clubs and hotels.

You may even have enjoyed the wedi experience already. If you’ve stayed with the likes of Champneys, The Hilton Group, Mariott Hotels or the Intercontinental Park Lane, the chances are you’ve enjoyed their wedi spa and wellness suites.

Exclusive residential developments across the globe also specify wedi – you can be certain your own home steam and shower room will be truly second to none.

Because wedi means the ultimate luxury in home spa and bathing, wherever you are in the world.
