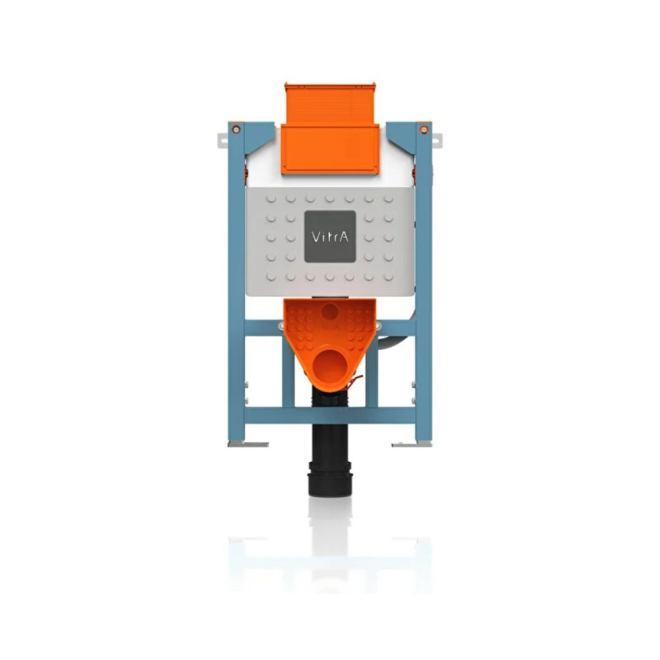

VitrA V Fix Prime Reduced Height Wall Hung WC Frame with Concealed Cistern 3/6L

Perfectly suited for mounting a wall hung toilet behind a short stud wall using a floor and wall fixed wc frame.

Installing a reduced height Wall Hung WC creates a more spacious feel to the bathroom and makes the area around the toilet much easier to keep clean. This floor and wall fixed wc frame can be used with most wall-hung toilets availabile in the UK with a range of flush plates in various styles. The VitrA WC frame comes with an option for a front or top mounted flush plate (sold seperately) and includes a dual flush 3/6 litre concealed cistern within the frame itself.

The V Fix Prime reduced height wc frames have a max load resistance of approximately 500KG when fitted, are very water efficient and quiet to use - making these wc frames an ideal fixture for most bathrooms.

V Fix Prime Toilet Frame Features:

• Reduced in Height for Tighter Spaces
• Concealed Cistern Included
• Dual Flush Control with 3/6 Litre Flush Option
• Dedicated Flush Plate with Multiple Style Options (not included, see dropdown above)
• Metal Frame with Floor & Wall Fixation for Added Stability
• Insulated to Help Reduce the Sound of the Flush & Potential Condensation
• Supplied with a 10 Year Manufacturer Guarantee for Added Piece of Mind

V Fix Prime Toilet Frame Specs:

• Height: 820mm
• Width: 500mm
• Depth: 190mm
• Water Inlet Position: Side
• Min / Max Working Pressure: 0.5 - 10 bar (recommended 1-5 bar)
• Max Load Resistance: 500kg (approximately)
• WRAS Approved: Yes
• Manufacturer Guarantee: 10 Years on Frame (5 Years on Flush Plate)
• Product Code: 761-5805-01UK

For more info see manufacturer datasheet below;

VitrA 761-5805-01UK Technical Document
