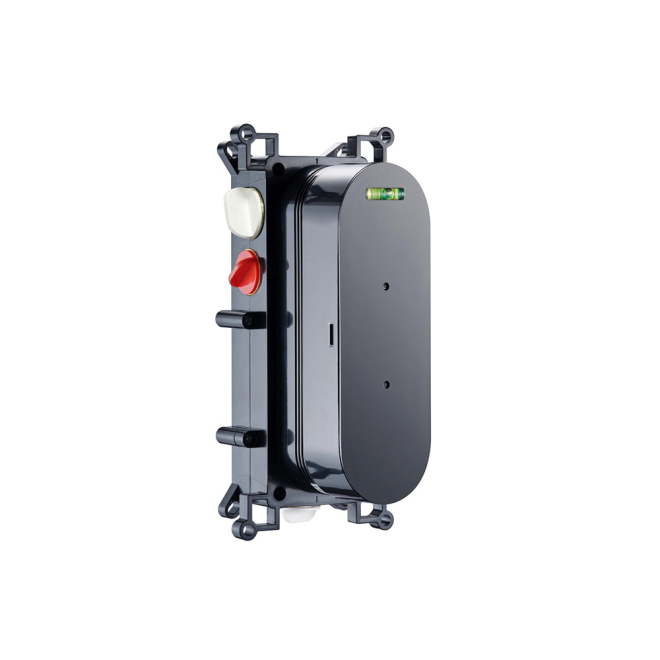

Scudo Universal Triple Outlet Concealed Valve Body

The Scudo Universal Triple Outlet Concealed Valve Body is a hidden unit designed to sit within your wall, serving as the foundation for a minimalist shower setup.

Crafted from solid brass and reinforced plastic, this in wall valve body combines strength with reliability. It is WRAS approved and supports water pressures from 0.5 bar up to 5 bar making it compatible with most domestic systems. With 3/4" BSP inlet connections, it's ready to link seamlessly into your plumbing.

The Scudo Universal Triple Outlet Concealed Valve Body offers long lasting reliability and the flexibility to pair with your choice of handles and plate finishes.

Scudo Universal Triple Outlet Concealed Valve Body Features:

• Solid Brass and Plastic Construction For Strength and Durability
• WRAS Approved for Safe Use in UK Water Systems
• Supports Wide Operating Pressure Range
• 3/4" BSP Inlet Connections For Easy Plumbing Integration
• Compact Dimensions Help Preserve Wall Space During Installation

Scudo Universal Triple Outlet Concealed Valve Body Specification:

• Height: 232mm
• Width: 122mm
• Depth: 138mm
• Material: Brass and Plastic
• Installation Type: In Wall (Concealed) Valve Body
• WRAS Approved: Yes
• Minimum Operating Pressure: 0.5 Bar
• Maximum Operating Pressure: 5 Bar
• Inlet Connection: 3/4" BSP
