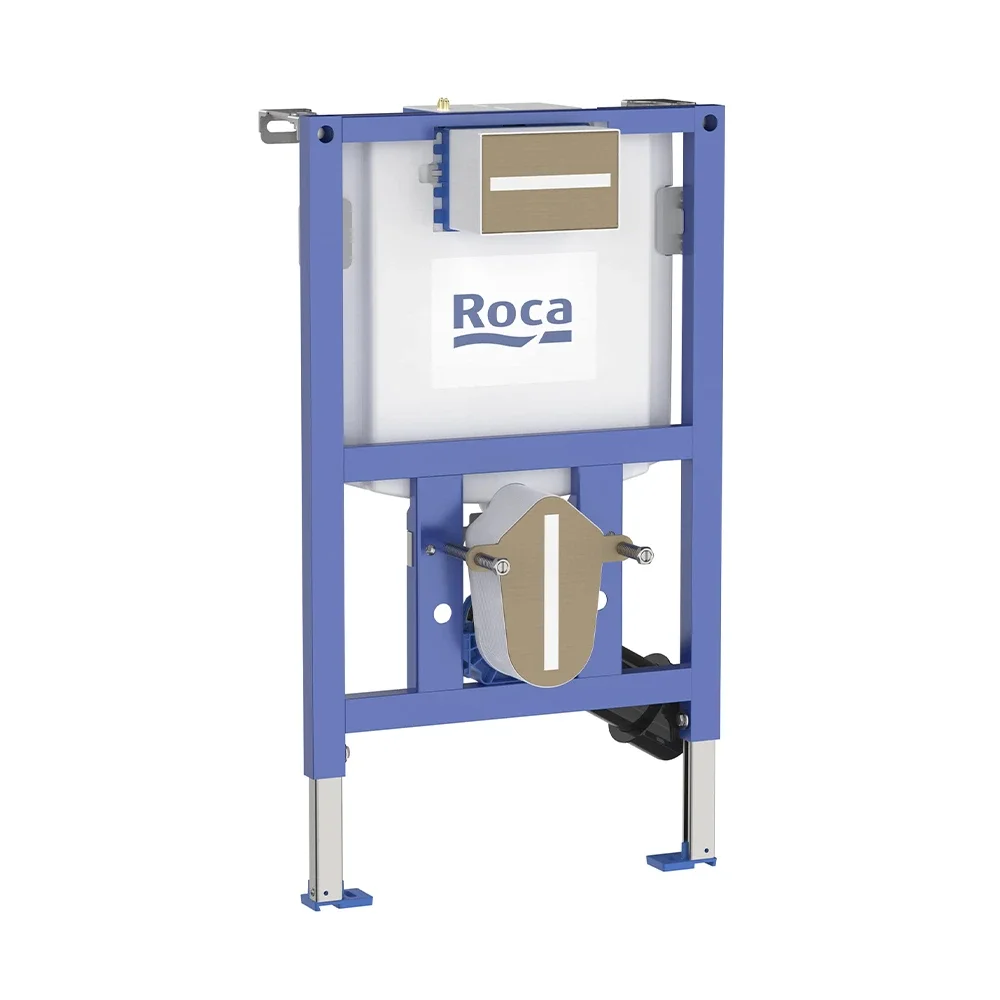

Roca Duplo S Low Height Installation System Cistern & Frame

Install a wall hung toilet in a height-restricted space with the Roca Duplo S Low Height Installation System Cistern & Frame, designed specifically for under-window installations.

This concealed installation system combines a low 820mm frame with a concealed cistern for supporting a wall hung WC. It features adjustable dual flush volumes of 6/3, 4.5/3 and 4/2 litres, with Dual Cable technology used for the flushing mechanism. The frame supports loads up to 400kg and includes adjustable feet with a 0 to 200mm adjustment range, while 90 and 110mm outlet connections are supported.

The Roca Duplo S Low Height Installation System Cistern & Frame provides the support and concealed flushing system needed when installing a wall hung WC beneath a window or in another restricted-height area.

Roca Duplo S Low Height Installation System Cistern & Frame Features:

• Low Height Installation System
• Designed For Under-Window Installation
• Suitable For Wall Hung WCs
• Concealed Cistern & Frame
• Adjustable Dual Flush Volumes
• Dual Cable Flushing Technology
• Frame Supports Up To 400kg
• Adjustable Feet
• Compatible With Roca PS Flush Plates

Roca Duplo S Low Height Installation System Cistern & Frame Specification:

• Height: 820mm
• Width: 525mm
• Suitable For: Wall Hung WC
• Dual Flush Options: 6/3, 4.5/3 & 4/2 Litres
• Outlet Connection: 90 / 110mm
• WC Fixing Centres: 180 / 230mm
• Frame Load Capacity: Up To 400kg
• Foot Adjustment: 0 - 200mm
• Hydraulic Connection Position: Lateral
• Flushing Technology: Dual Cable
• Compatible Flush Plates: Roca PS
• Flush Plate Included: No
