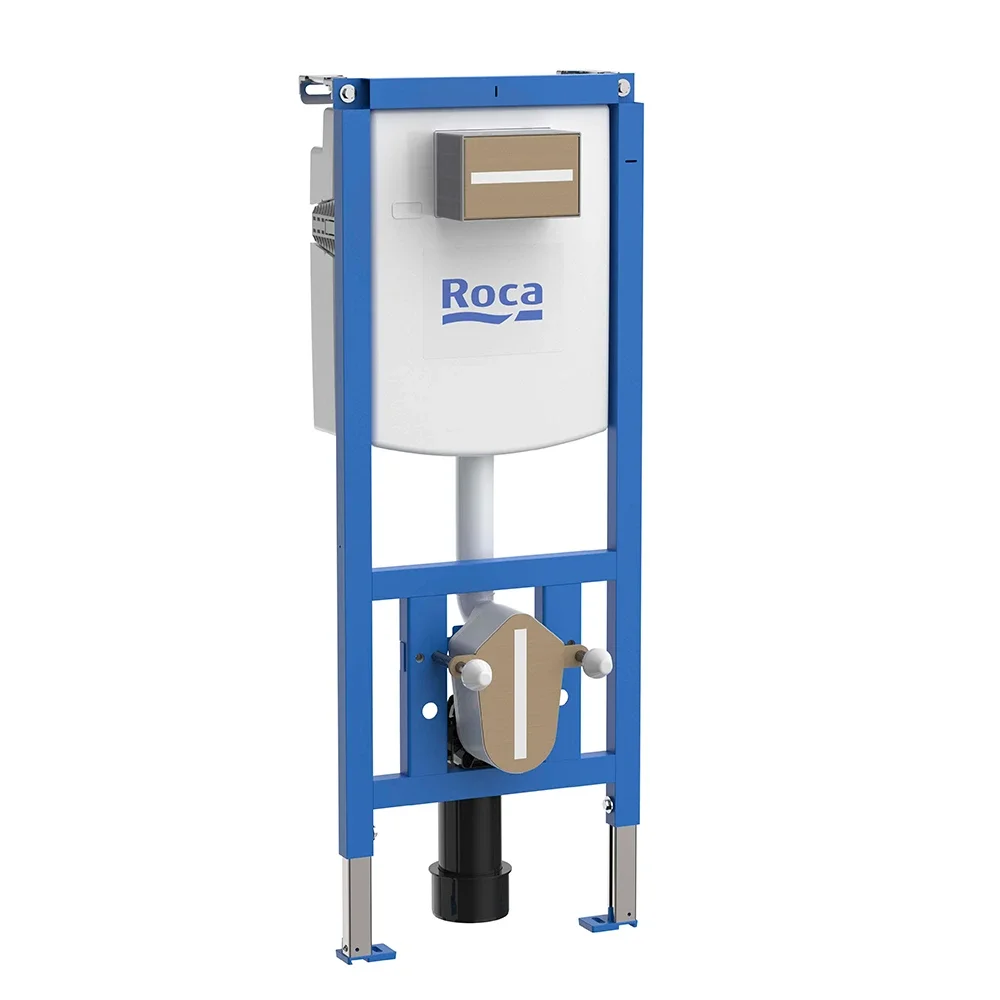

Roca Duplo S Full Height Concealed Cistern & Frame

Install your wall hung toilet with the Roca Duplo S Full Height Concealed Cistern & Frame, keeping the supporting frame and cistern hidden behind the finished wall.

Designed for wall hung WCs, this Duplo S system combines a full height installation frame with a concealed cistern. It features an adjustable 4/2 litre dual flush, a frontal operating panel position and a top water inlet. The cistern has a 120mm tank depth with a minimum fixation depth of 135mm, while the system supports a dynamic pressure range of 0.1 to 10 bar.

The Roca Duplo S Full Height Concealed Cistern & Frame provides the concealed support and flushing system required for your wall hung WC installation.

Roca Duplo S Full Height Concealed Cistern & Frame Features:

• Full Height Installation System
• Suitable For Wall Hung WCs
• Concealed Cistern & Frame
• Adjustable Dual Flush
• Frontal Operating Panel Position
• Top Water Inlet
• 120mm Tank Depth
• DN90 Elbow Connection

Roca Duplo S Full Height Concealed Cistern & Frame Specification:

• Height: 1120mm
• Width: 450mm
• Depth: 135mm
• Suitable For: Wall Hung WC
• Tank Depth: 120mm
• Minimum Fixation Depth: 135mm
• Adjustable Flushing Volume: Dual Flush 4/2 Litres
• Dynamic Pressure Range: 0.1 - 10 Bar
• Operating Panel Position: Frontal
• Water Inlet Position: Top
• Elbow Connection: DN90 (90mm)
