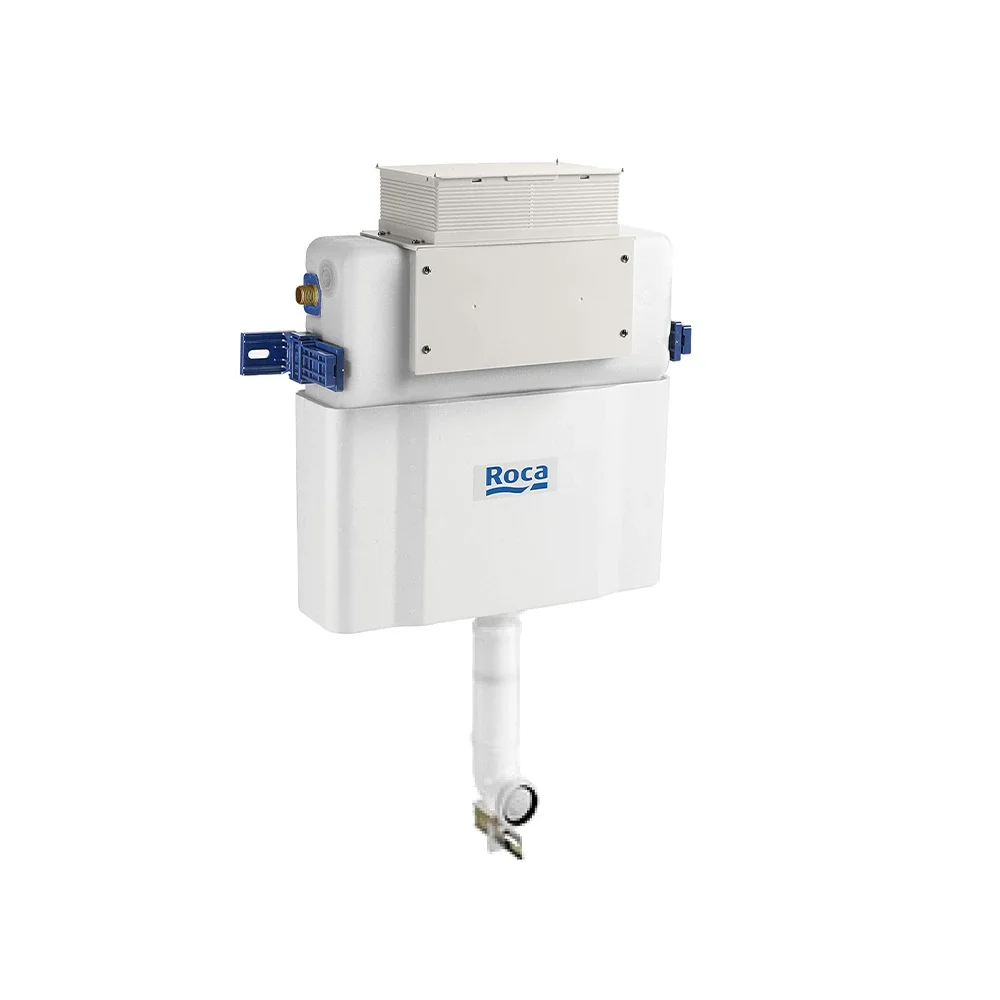

Roca Duplo ONE Under Window Concealed Cistern

Make use of the space beneath a bathroom window with the Roca Duplo ONE Under Window Concealed Cistern, keeping the cistern neatly hidden while working with a lower installation area.

Designed for floor standing toilets, this concealed cistern has a 135mm tank depth and requires a minimum fixing depth of 140mm. It comes preset with a 6/3 litre dual flush and features a lateral water inlet, frontal operating panel position and DN90 elbow connection. The cistern is suitable for dynamic water pressures between 0.1 and 10 bar.

The Roca Duplo ONE Under Window Concealed Cistern gives you a practical way to create a concealed toilet installation in your bathroom when space beneath a window needs to be considered.

Roca Duplo ONE Under Window Concealed Cistern Features:

• Under Window Concealed Design
• Designed For Floor Standing Toilets
• Dual Flush System
• 135mm Tank Depth
• 140mm Minimum Fixing Depth
• Frontal Operating Panel Position
• Lateral Water Inlet

Roca Duplo ONE Under Window Concealed Cistern Specification:

• Height: 600mm
• Width: 145mm
• Depth: 460mm
• Tank Depth: 135mm
• Minimum Fixing Depth: 140mm
• Suitable For: Floor Standing Toilet
• Flushing Volume Preset: Dual Flush 6 / 3 Litres
• Adjustable Flush Volume: Dual Flush 6 / 3 Litres
• Operating Panel Position: Frontal
• Water Inlet Position: Lateral
• Dynamic Pressure Range: 0.1 - 10 Bar
• Elbow Connection: DN90 (90mm)
• Compatible with: A3460NB000
