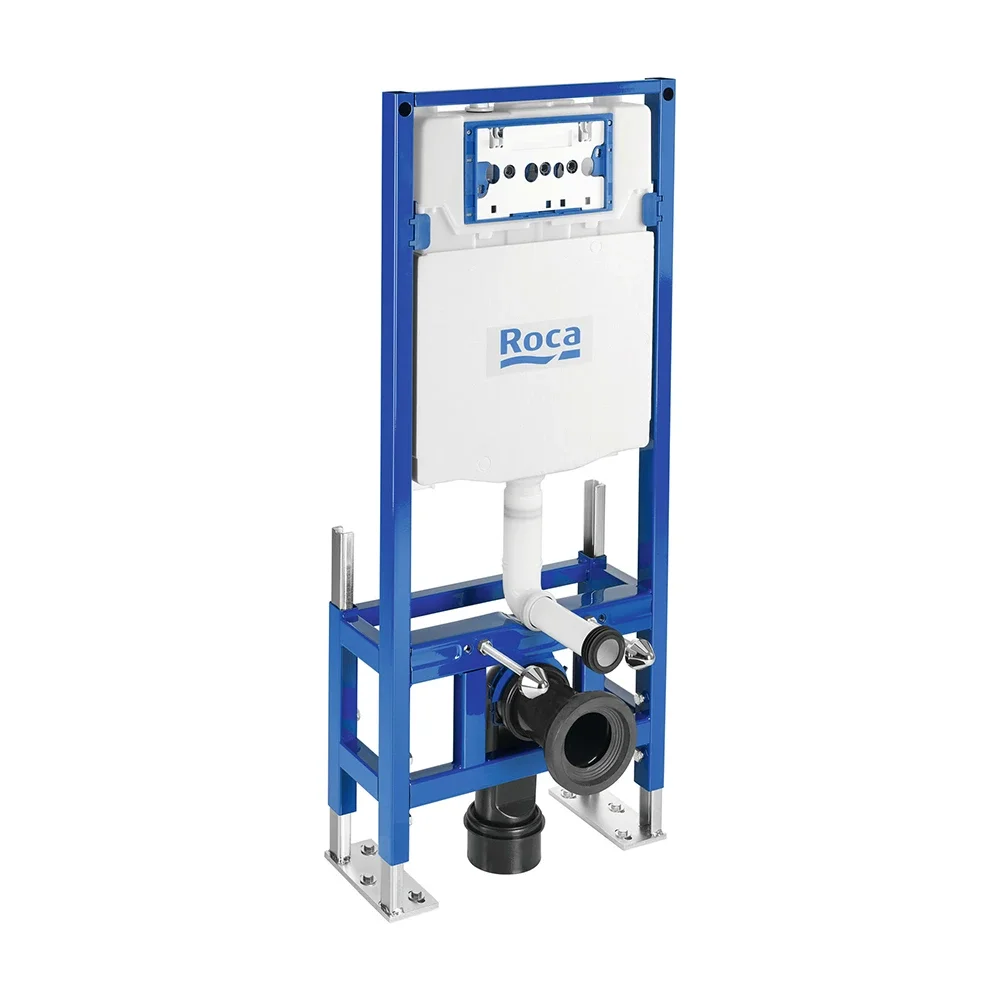

Roca Duplo ONE Concealed Cistern & Frame for Solid Floor

Create a neat wall hung toilet installation in your bathroom with the Roca Duplo ONE Concealed Cistern & Frame for Solid Floor, keeping the cistern and supporting frame hidden from view.

Designed for wall hung WCs, this Duplo ONE system combines a concealed cistern with a supporting frame and has a compact 80mm tank depth. It comes preset with a 6/3 litre dual flush, with adjustable options of 4.5/3 litres, 4/2 litres and 6/3 litres available. The system has a minimum fixing depth of 220mm, a top water inlet and a frontal operating panel position, along with DN100 and DN90 elbow connection options.

The Roca Duplo ONE Concealed Cistern & Frame for Solid Floor gives your bathroom the support needed for a wall hung WC while keeping the working parts neatly concealed behind the wall.

Roca Duplo ONE Concealed Cistern & Frame for Solid Floor Features:

• Concealed Cistern & Frame
• Designed For Wall Hung WCs
• Compact 80mm Tank Depth
• Dual Flush System
• Adjustable Flush Volumes
• Frontal Operating Panel Position
• Top Water Inlet

Roca Duplo ONE Concealed Cistern & Frame for Solid Floor Specification:

• Height: 1120mm
• Width: 200mm
• Depth: 475mm
• Tank Depth: 80mm
• Minimum Fixing Depth: 220mm
• Suitable For: Wall Hung WC
• Flushing Volume Preset: Dual Flush 6 / 3 Litres
• Adjustable Flush Volume: Dual Flush 4.5 / 3 Litres
• Adjustable Flush Volume: Dual Flush 4 / 2 Litres
• Adjustable Flush Volume: Dual Flush 6 / 3 Litres
• Operating Panel Position: Frontal
• Water Inlet Position: Top
• Dynamic Pressure Range: 0.1 - 10 Bar
• Elbow Connection: DN100 (110mm) / DN90 (90mm)
• Compatible with: A3460NB000
