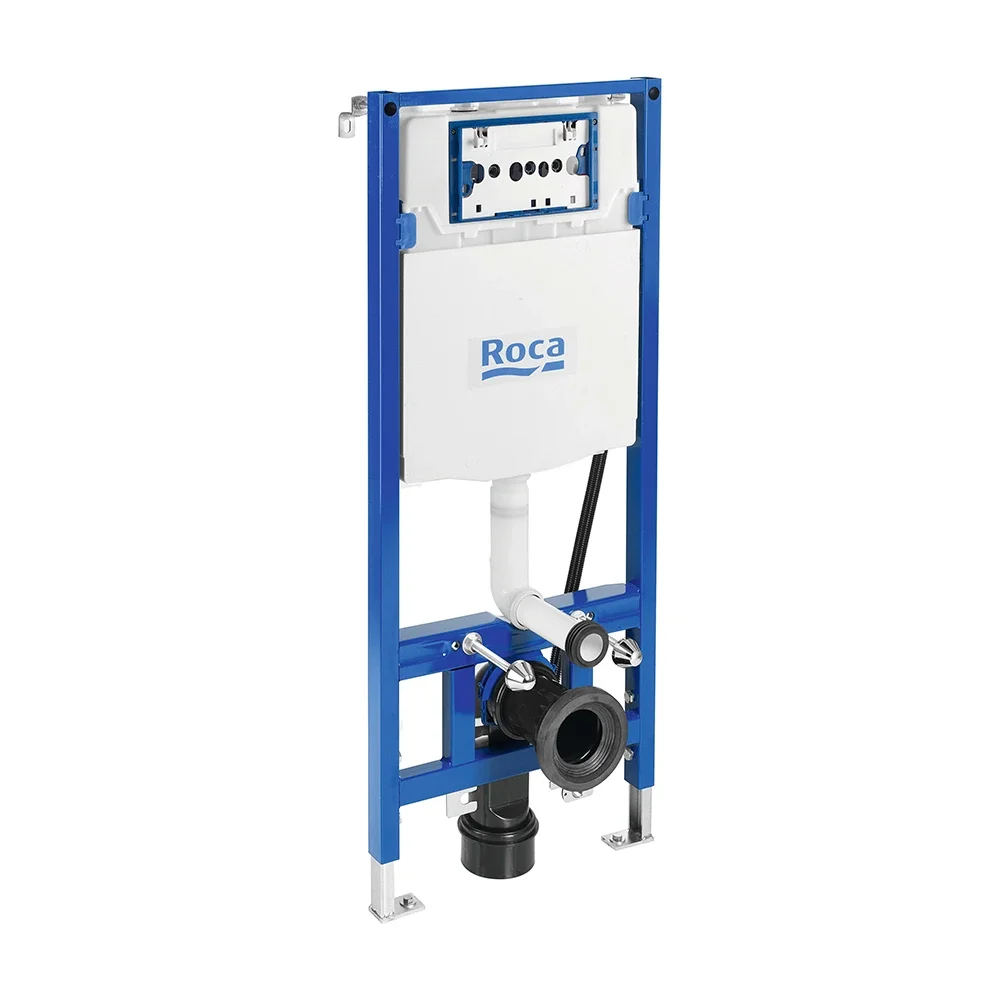

Roca Duplo ONE Concealed Cistern & Frame for Smart Toilets

Keep your smart toilet installation neat and streamlined with the Roca Duplo ONE Concealed Cistern & Frame for Smart Toilets, keeping the main installation components hidden away behind your bathroom wall.

Designed for compatible wall hung smart toilets, this Duplo ONE system combines a concealed cistern and supporting frame with a compact 80mm tank depth. The cistern comes preset with a 6/3 litre dual flush, with adjustable settings of 4.5/3 litres, 4/2 litres and 6/3 litres available. It features a top water inlet, frontal operating panel position and a minimum fixing depth of 107mm, with DN100 and DN90 elbow connections provided for the WC installation.

The Roca Duplo ONE Concealed Cistern & Frame for Smart Toilets gives your bathroom the support needed for a compatible wall hung smart WC while keeping the cistern and frame neatly out of sight.

Roca Duplo ONE Concealed Cistern & Frame for Smart Toilets Features:

• Concealed Cistern & Frame
• Designed For Wall Hung Smart Toilets
• Compact 80mm Tank Depth
• Dual Flush System
• Adjustable Flush Volumes
• Frontal Operating Panel Position
• Top Water Inlet
• Compatible With A3460NB000 & A803060002

Roca Duplo ONE Concealed Cistern & Frame for Smart Toilets Specification:

• Brand: Roca
• Range: Duplo ONE
• Tank Depth: 80mm
• Minimum Fixing Depth: 107mm
• Suitable For: Wall Hung WC
• Flushing Volume Preset: Dual Flush 6 / 3 Litres
• Adjustable Flush Volume: Dual Flush 4.5 / 3 Litres
• Adjustable Flush Volume: Dual Flush 4 / 2 Litres
• Adjustable Flush Volume: Dual Flush 6 / 3 Litres
• Operating Panel Position: Frontal
• Water Inlet Position: Top
• Dynamic Pressure Range: 0.1 - 10 Bar
• Elbow Connection: DN100 (110mm) / DN90 (90mm)
• Compatible with These Smart Toilets: A3460NB000 / A803060002
