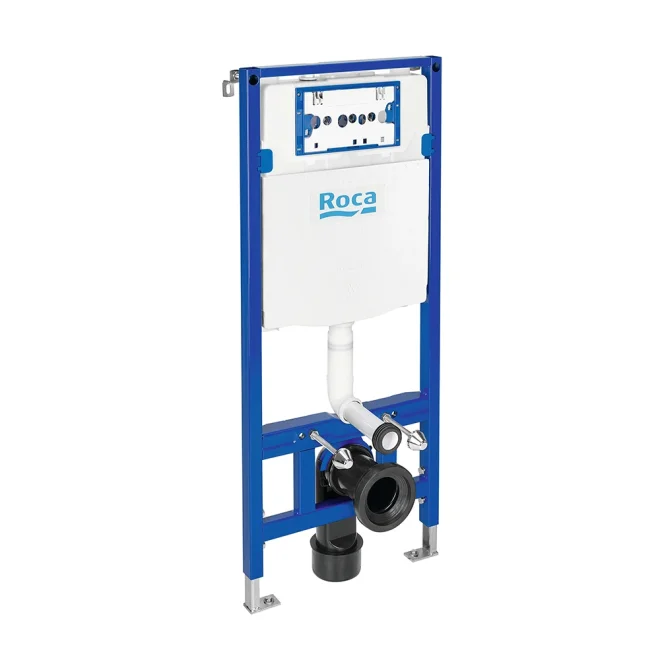

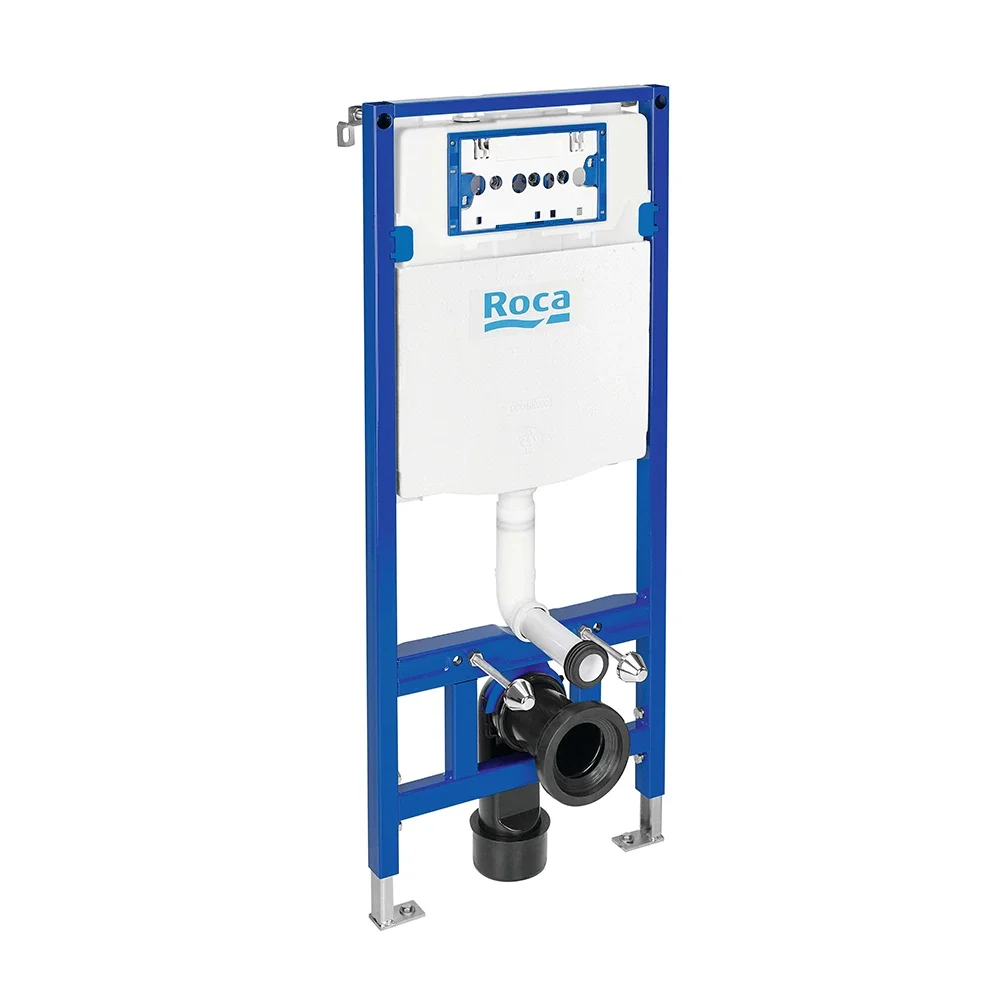

Roca Duplo ONE Concealed Cistern & Frame

Install your wall hung toilet with the Roca Duplo ONE Concealed Cistern & Frame, keeping the cistern and supporting structure hidden behind the finished wall.

Designed for wall hung WCs, the Duplo ONE combines a concealed cistern with a supporting installation frame and uses a front mounted operating panel. The cistern has an 80mm tank depth with a minimum fixation depth of 107mm and a top water inlet. It is preset for a 3/6 litre dual flush, with adjustable 4.5/3, 4/2 and 6/3 litre dual flush settings also available.

The Roca Duplo ONE Concealed Cistern & Frame provides the concealed support and flushing system needed to complete your wall hung toilet installation.

Roca Duplo ONE Concealed Cistern & Frame Features:

• Designed For Wall Hung WCs
• Concealed Cistern & Frame
• Dual Flush System
• Adjustable Flushing Volume
• Front Operating Panel Position
• Top Water Inlet
• 80mm Cistern Depth
• DN100 & DN90 Elbow Connections

Roca Duplo ONE Concealed Cistern & Frame Specification:

• Height: 1120mm
• Width: 475mm
• Depth: 107mm
• Suitable For: Wall Hung WC
• Tank Depth: 80mm
• Minimum Fixation Depth: 107mm
• Flushing Volume Preset: Dual Flush 3/6 Litres
• Adjustable Flushing Volume: Dual Flush 4.5/3 Litres
• Adjustable Flushing Volume: Dual Flush 4/2 Litres
• Adjustable Flushing Volume: Dual Flush 6/3 Litres
• Dynamic Pressure Range: 0.1 - 10 Bar
• Operating Panel Position: Frontal
• Water Inlet Position: Top
• Elbow Connection: DN100 (110mm) / DN90 (90mm)
