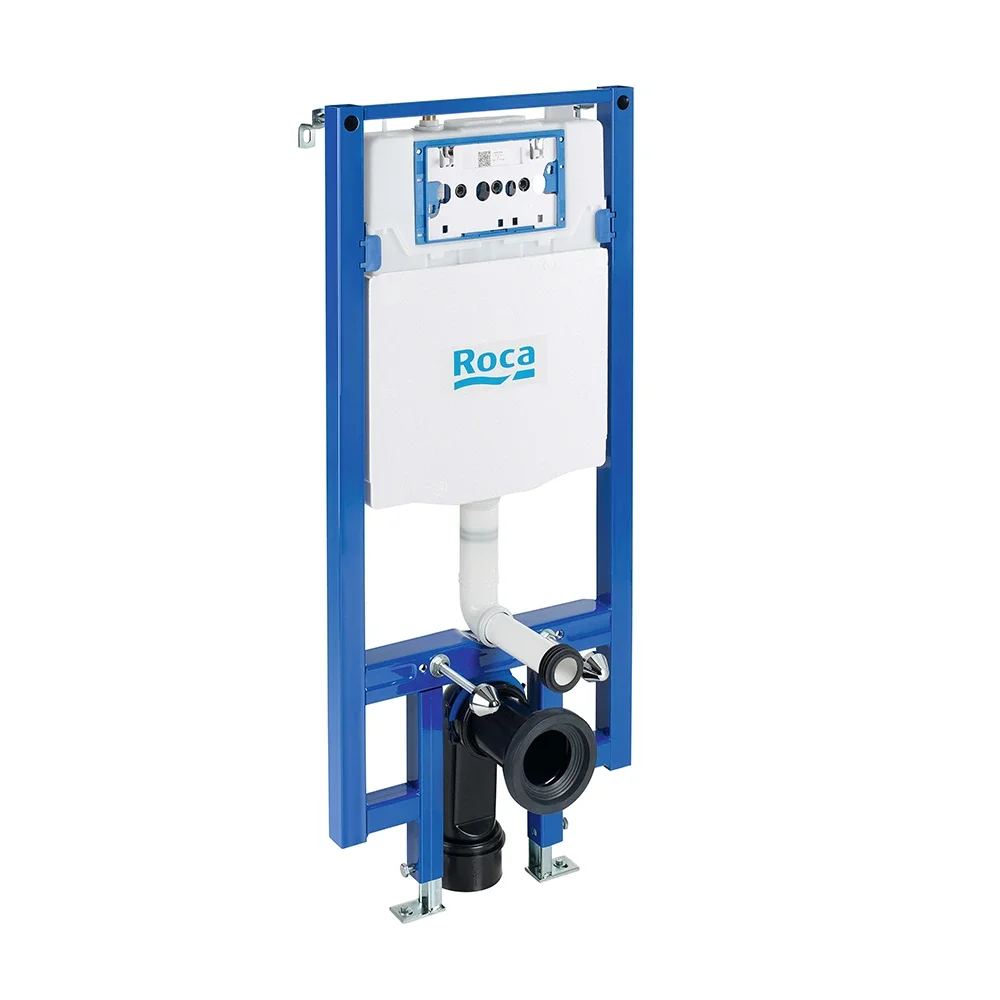

Roca Duplo ONE Compact Concealed Cistern & Frame

Keep your wall hung toilet looking neat and uncluttered with the Roca Duplo ONE Compact Concealed Cistern & Frame, keeping the cistern and supporting frame hidden away behind your bathroom wall.

Designed for wall hung WCs, this compact Duplo ONE system has an 80mm tank depth and requires a minimum fixing depth of 90mm, making it a useful choice where installation space is limited. The cistern comes preset with a 6/3 litre dual flush and can also be adjusted to 4.5/3 litres or 4/2 litres. It features a top water inlet and frontal operating panel position, with DN100 and DN90 elbow connection options.

The Roca Duplo ONE Compact Concealed Cistern & Frame gives your bathroom the clean look of a wall hung toilet while keeping the main installation components neatly out of sight.

Roca Duplo ONE Compact Concealed Cistern & Frame Features:

• Compact Concealed Cistern & Frame
• Designed For Wall Hung WCs
• 80mm Tank Depth
• 90mm Minimum Fixing Depth
• Dual Flush System
• Adjustable Flush Volumes
• Frontal Operating Panel Position
• Top Water Inlet

Roca Duplo ONE Compact Concealed Cistern & Frame Specification:

• Height: 1120mm
• Width: 90mm
• Depth: 495mm
• Tank Depth: 80mm
• Minimum Fixing Depth: 90mm
• Suitable For: Wall Hung WC
• Flushing Volume Preset: Dual Flush 6 / 3 Litres
• Adjustable Flush Volume: Dual Flush 4.5 / 3 Litres
• Adjustable Flush Volume: Dual Flush 4 / 2 Litres
• Adjustable Flush Volume: Dual Flush 6 / 3 Litres
• Operating Panel Position: Frontal
• Water Inlet Position: Top
• Dynamic Pressure Range: 0.1 - 10 Bar
• Elbow Connection: DN100 (110mm) / DN90 (90mm)
• Compatible with: A3460NB000
