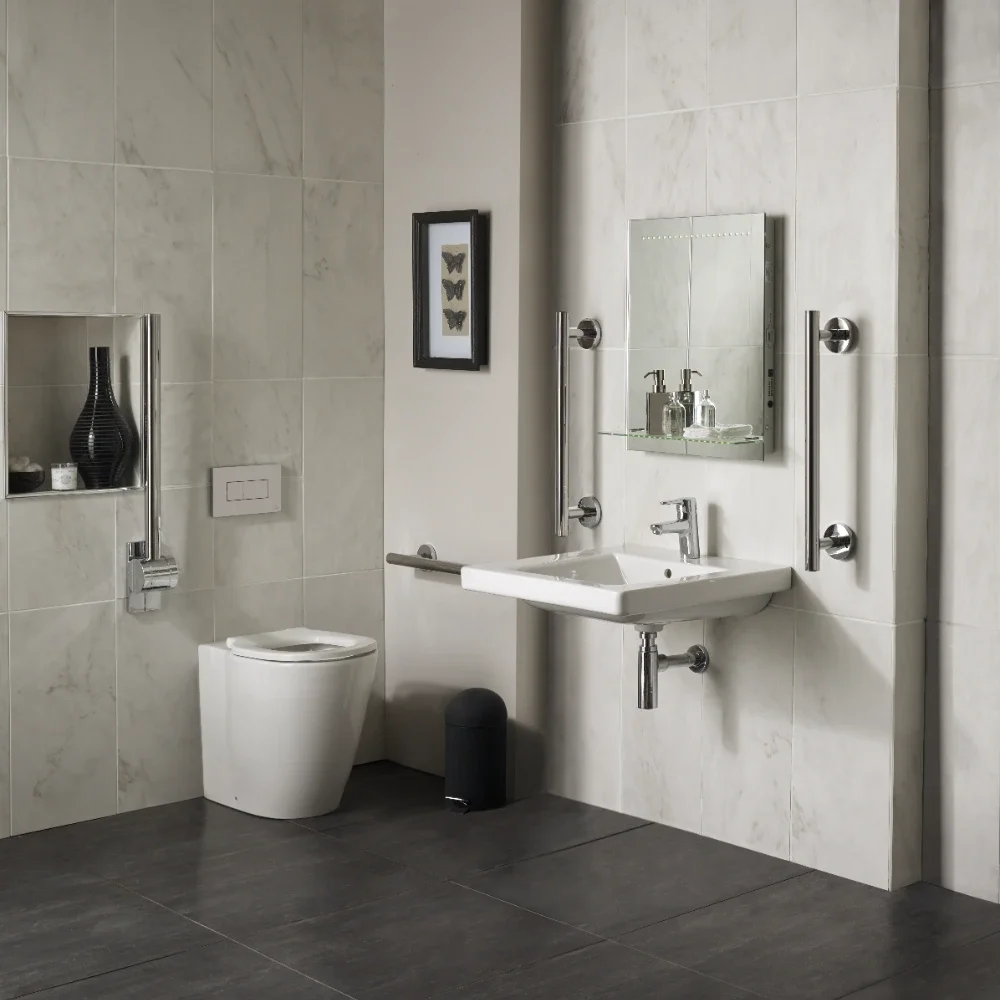

Ideal Standard Concept Freedom 600mm Doc M Bathroom Pack & Back to Wall Toilet

Make your bathroom more accessible and comfortable to use with the Ideal Standard Concept Freedom 600mm Doc M Bathroom Pack & Back to Wall Toilet.

Developed for accessible bathrooms, this Concept Freedom pack is Doc M compliant and brings together the sanitaryware, support fittings and controls required to form a coordinated bathroom layout. The back to wall WC has a raised 510mm height and a 550mm projection, helping provide a more accessible seating position while retaining a relatively compact footprint. A ring toilet seat accompanies the WC, while its back to wall design conceals the cistern and associated pipework behind the installation.

The 600mm accessible basin provides a generous washing area and projects 555mm from the wall to provide space for the user to position themselves comfortably. It has a single tap hole and overflow, with a chrome basin mixer, waste and bottle trap completing the washing area. The mixer has a 100mm spout projection and hidden aerator, with a flow rate of 3.8 litres per minute at 3 bar.

Support is provided throughout the bathroom by four 490mm chrome grab rails and an additional 340mm grab rail. An 800mm hinged support rail can be positioned alongside the WC, providing additional assistance while allowing the rail to be moved when it is not required. The different rail lengths allow support points to be positioned around the WC and basin in accordance with the supplied Doc M layout drawings.

The WC uses a washdown flush and is paired with a concealed flushing arrangement operated through the supplied chrome control plate. A thermostatic mixer valve is also included to help manage the water supplied to the basin. With the main sanitaryware, brassware, support rails and installation fittings brought together, the pack provides a comprehensive starting point for a Doc M compliant bathroom.

The Ideal Standard Concept Freedom Bathroom Pack gives your bathroom a coordinated accessible layout with practical support around both the WC and washing area.

Ideal Standard Concept Freedom 600mm Doc M Bathroom Pack & Back to Wall Toilet Features:

• Doc M Compliant Bathroom Pack
• 600mm Accessible Basin
• Raised Height Back To Wall WC
• Ring Toilet Seat
• 4 x 490mm Chrome Grab Rails
• 340mm Chrome Grab Rail
• 800mm Chrome Hinged Support Rail
• Chrome Basin Mixer With Waste
• 100mm Mixer Spout Projection
• Hidden Aerator
• Chrome Bottle Trap
• Chrome Flush Control Plate
• Thermostatic Mixer Valve
• Washdown Flush
• Dual Flush Operation
• Single Basin Tap Hole
• Basin Overflow
• Horizontal WC Outlet
• Doc M Layout Drawings Supplied

Ideal Standard Concept Freedom 600mm Doc M Bathroom Pack & Back to Wall Toilet Specification:

• Basin Height: 165mm
• Basin Width: 600mm
• Basin Length / Projection: 555mm
• WC Height: 510mm
• WC Width: 365mm
• WC Length / Projection: 550mm
• WC Mounting: Floor
• WC Flush Type: 2 Volumes / Washdown
• WC Flush Volumes: 4.5 / 3 Litres
• WC Outlet: Horizontal
• Basin Tap Holes: 1
• Basin Overflow: Yes
• Basin Mixer Flow Rate: 3.8 Litres Per Minute At 3 Bar
• Basin Mixer Spout Projection: 100mm
• Operating Pressure: 0.5 Bar
