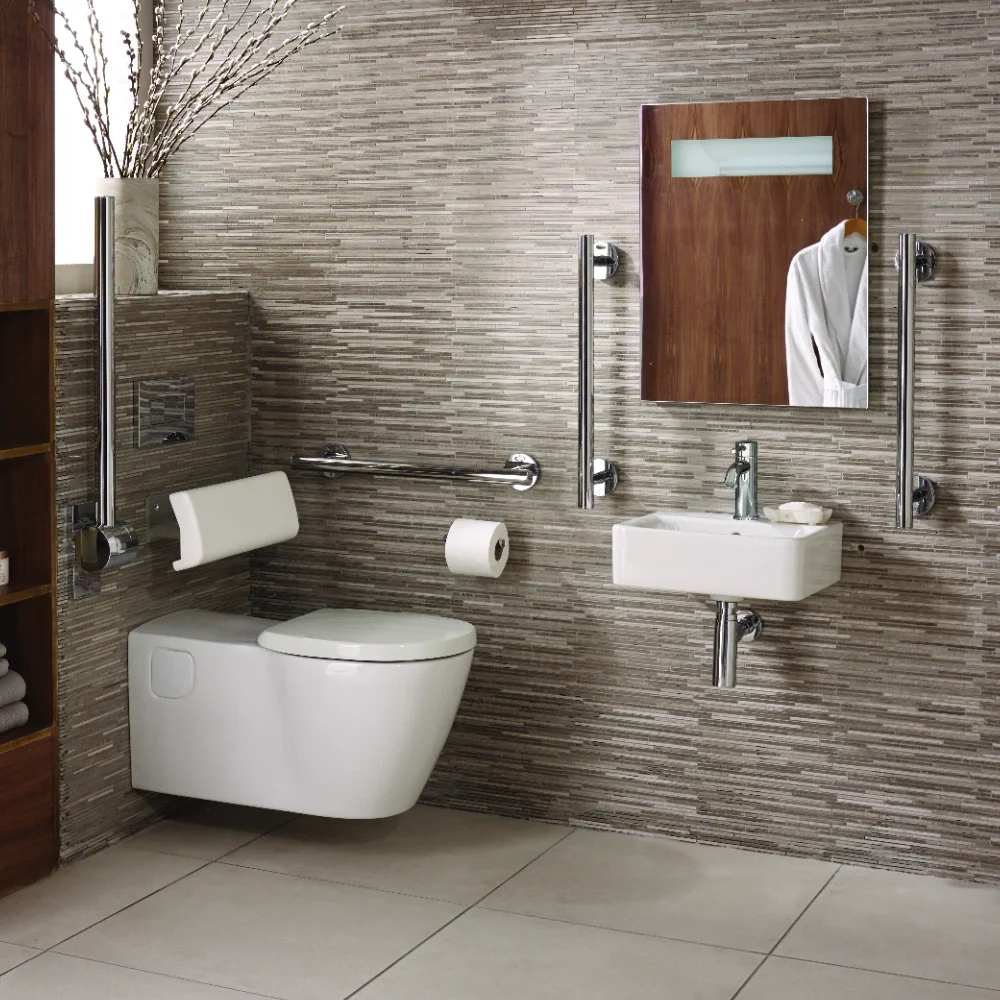

Ideal Standard Concept Freedom 400mm Doc M Bathroom Pack & Wall Hung Toilet

Make the most of the available space in your accessible bathroom with the Ideal Standard Concept Freedom 400mm Doc M Bathroom Pack & Wall Hung Toilet.

Developed for Doc M compliant accessible bathrooms, this Concept Freedom pack uses a compact 400mm handrinse basin alongside an extended wall-hung WC to provide the necessary facilities. The WC has a 750mm projection to provide the additional depth required for an accessible layout, while its wall-hung installation leaves the floor underneath clear. Rimless flushing directs the wash around the bowl without a traditional rim and the supplied ring seat and padded backrest complete the WC area.

The 400mm handrinse basin measures 360mm from the wall, making it particularly suitable where space around the washing area is limited. A single tap hole and overflow are incorporated into the basin, with a chrome mixer providing a flow rate of 3.8 litres per minute at 3 bar. The mixer has a 100mm spout projection and hidden aerator, while a chrome bottle trap and thermostatic mixer valve provide the accompanying fittings for the basin installation.

Support can be arranged around the WC and basin using the selection of chrome rails supplied with the pack. Four 490mm grab rails provide the main fixed support points, with an additional 340mm grab rail available for the shorter position. An 800mm hinged support rail provides assistance alongside the WC and can be raised when additional space is required.

A concealed flushing arrangement keeps the cistern out of sight, with the supplied chrome pneumatic control plate providing access to the dual flush. The WC uses a washdown system with 4.5 and 3 litre flush volumes, while the included wall-hung support set provides the necessary support for the extended WC installation.

The Ideal Standard Concept Freedom 400mm Bathroom Pack gives your bathroom a complete accessible arrangement while the smaller handrinse basin helps make better use of limited space.

Ideal Standard Concept Freedom 400mm Doc M Bathroom Pack & Wall Hung Toilet Features:

• Doc M Compliant Bathroom Pack
• 400mm Wall Hung Handrinse Basin
• 750mm Projection Wall Hung WC Bowl
• Rimless WC Design
• Ring Toilet Seat
• Padded Backrest
• 4 x 490mm Chrome Grab Rails
• 340mm Chrome Grab Rail
• 800mm Chrome Hinged Support Rail
• Chrome Basin Mixer
• 100mm Mixer Spout Projection
• Hidden Aerator
• Chrome Bottle Trap
• Thermostatic Mixer Valve
• Chrome Pneumatic Control Plate
• Wall Hung Support Set
• Dual Flush Operation
• 4.5 And 3 Litre Flush Volumes
• Washdown Flush
• Horizontal WC Outlet
• Single Basin Tap Hole
• Basin Overflow

Ideal Standard Concept Freedom 400mm Doc M Bathroom Pack & Wall Hung Toilet Specification:

• Basin Height: 160mm
• Basin Width: 400mm
• Basin Length / Projection: 360mm
• WC Height: 377mm
• WC Width: 360mm
• WC Length / Projection: 750mm
• WC Mounting: Wall Hung
• WC Flush Type: 2 Volumes / Washdown
• WC Technology: Rimless
• WC Fixing: Fixing Bolts
• Basin Tap Holes: 1
• Basin Overflow: Yes
• Basin Mixer Flow Rate: 3.8 Litres Per Minute At 3 Bar
• Basin Mixer Spout Projection: 100mm
• Operating Pressure: 0.5 Bar
