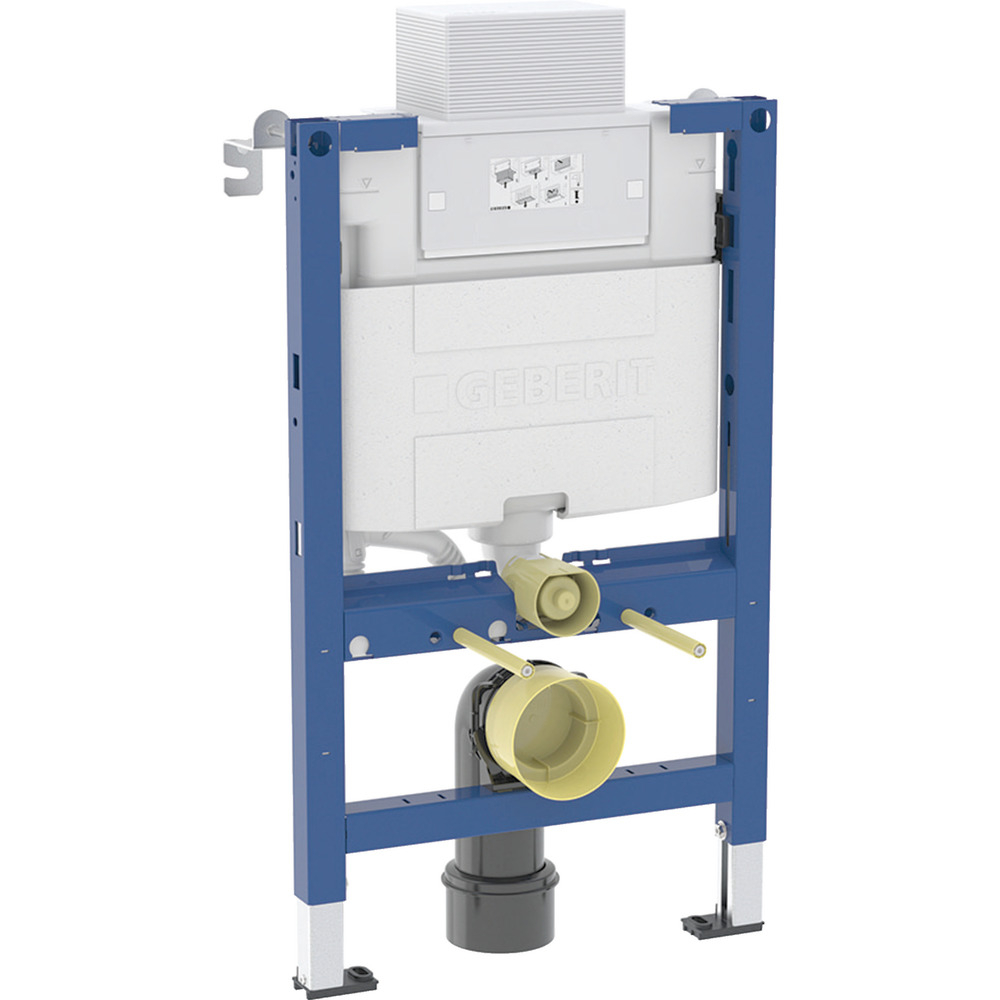

Geberit Duofix Alpha 820mm Wall-Hung Concealed Cistern Frame

The Gerebit Duofix Alpha range of cistern frames are perfect for use with wall hung toilets.

The perfect mix of affordability, quality and simplicity, there is no reason why you should not add the Geberit Duofix frame to your bathroom. Making installation much easier, the fixed frame sits behind the wall, keeping your cistern secure. There are a number of flush plates available to purchase with buttons shaped either round or square in colours chrome, white, red gold, black chrome, brass and black matt.

Complete your dream bathroom with the Geberit Duofix Alpha wall-hung concealed cistern.

Geberit Duofix Alpha Wall Hung-Hung Concealed Cistern Features:

• Multiple Flush Plate Colours Available to Match Your Other Bathroom Fittings
• Easy Installation
• Made From High Quality Steel
• Top or Front Actuation For Dual Flush
• With Conduit Pipe For Feed Pipe For Geberit AquaClean Shower Toilets
• Fastening Option For Electrical Connection
• Protection Box Which Protects Against Moisture And Dirt

Geberit Duofix Alpha Wall Hung-Hung Concealed Cistern Specification:

• Height: 820mm
• Width: 500mm
• Depth: 140mm
• Flow Pressure: 0.1-10 Bar
• Max Operating Temperature: 25 Degrees
• Factory Flush Volume: 5.8/3l
• Large Flush Volume Adjustments: 4,4.5,6,7.5l
• Small Flush Volume Adjustments: 2-4l

Please see installation guides below:

Instruction Manual
