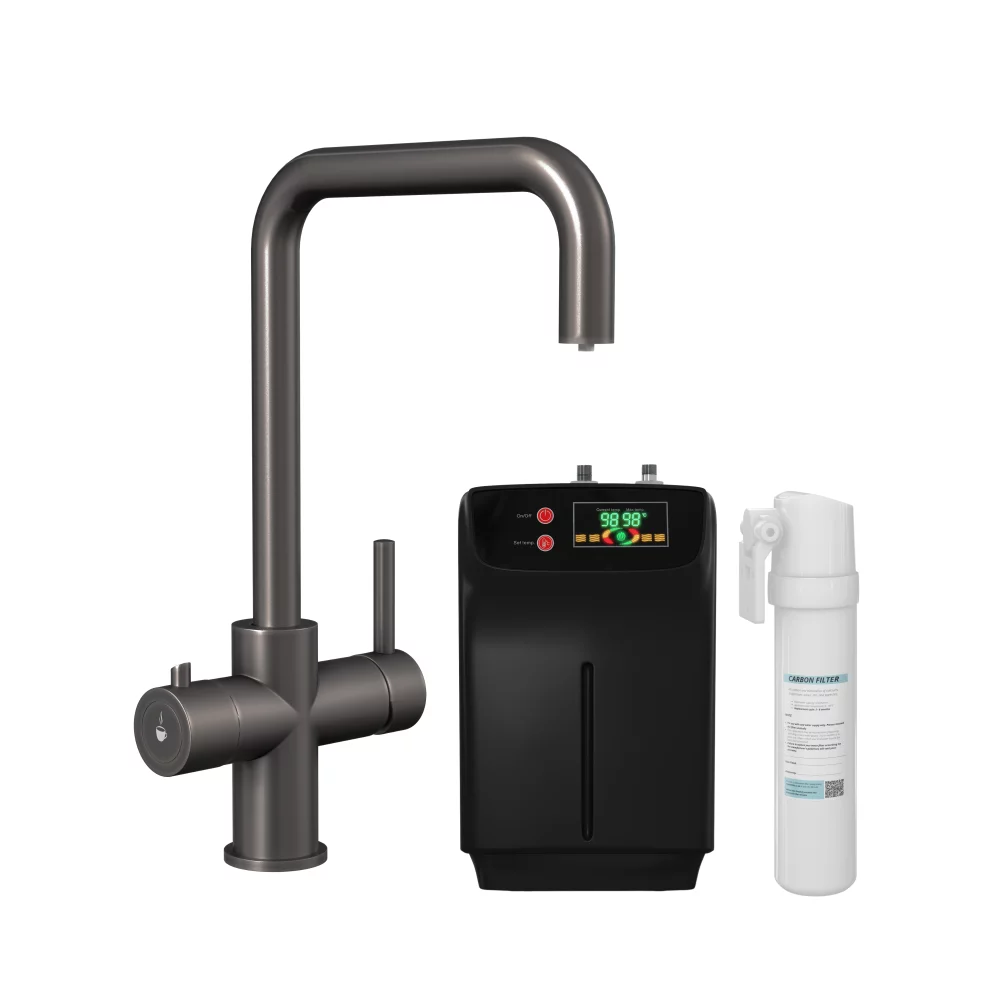

Caliente 3-in-1 Square Spout Gunmetal Boiling Hot Water Tap
The Caliente 3 in 1 Boiling Hot Water Kitchen Sink Mixer Tap features a high quality Gun Metal finish and dispenses both standard hot & cold water as well as filtered boiling hot water.
This Caliente boiling water tap delivers great results while looking great. The Instant Boiler Tap is functional, easy to use, fit and maintain. This kit come with everything you need including the Tap, Boiler and filter.
The secret to the boiling water tap is the boiler/tank unit which discreetly sits under your sink unit. Caliente boiler taps feature a state of the art boiler which has several safety features including a temperature sensor to give an accurate digital reading of the current water temperature. A float sensor detecting the water level in the tank, this avoids dry start that would damage the boiler. An overheat stat to ensure the unit never overcooks.
Energy Saving
Fitting a Caliente 3-in1 Boiling water tap could save you money on your energay bill with an average year standing cost of only £37 with an average saving of £98 per year than running a kettle.
Filter Replacement Requirement
As part of the standard maintenance process, the filters in your boiling water tank need to be replaced every 3 to 6 months depending on the hardness of water in your area. This regular maintenance is crucial for ensuring optimal performance and longevity of the unit. Failure to do so may affect water quality, boiler performance and void the warranty.
Hard Water - 3 months
Medium Water - 4/5 months
Soft Water - 6 months
Caliente 3-in-1 Boiling Water Tap Features:
- High Quality Gun Metal Finish
- Provides hot, cold and boiling water in one tap
- Includes Tap, boiler unit and filter
- Precision engineered brass construction to the highest standard with individual human hand testing.
- In-built hydro-aerator for hot & cold mains supplied water.
- Child-safe, double spring loaded; redundancy based boiling water safety handle.
- Cool-to-touch self-insulating technology integrated into each 360 degrees swivel spout.
Tank Features:
- Temperature adjustable from 75 - 98°C
- digital touch control and functional colour display.
- Insulated and energy efficient
- Safety float and overheat cutoff features.
Filter Features:
- Carbon rod filter designed for absorption and removal of calcium, magnesium, odour, dirt and particles.
Calinente Tap specification:
- Height (mm): 364
- Width (mm): 148
- Length / Depth (mm): 235
- Standards: BS EN 200:2008
- Construction Material: Stainless Steel
- Certification: WRAS Approved 2109055
- Minimum Working Pressure 1bar
- Maximum Working Pressure 3bar
- Swivel Spout: yes
- Inlet Connection: 1/2” BSP Flexible Tails Included
- Tap Hole Diameter: 35mm
- Hot Water Dispenser Handle: Left
- Standard Hot and Cold Water Handle: Right
Flow Rates
Standard water:
- 0.2bar (l/min) 3.8
- 0.5bar (l/min) 6
- 1bar (l/min) 7.2
- 2bar (l/min) 8
- 3bar (l/min) 9.2
Tank Specification:
- Height (mm): 330
- Width (mm): 230
- Length/Depth (mm): 210
- Tank capacity: 2.4 Ltrs
- Rated Input: 1.5kw
- Rated Voltage: 220-240V ac, 50HZ
- Standby Power: 2.2w
- IPX Classification: IPX4
- Static Bar Pressure: 1Bar
- Dynamic Bar Pressure: 1.5 to 5Bar
- Optimum working pressure: 1Bar Minimum to 3Bar Maximum
- Plug Type: Fused 13A 3 Pin Plug, Power Cord Length (mm): 910
- Guarantee: 2 years
- Wras Approved 2203344
- Connections: 1/2" BSP Male & 3/8" BSP Female to quick connection adaptor
Filter Specification
- Height (mm): 310
- Width (mm): 70
- Length / Depth (mm): 88
- Certification: WRAS Approved 2008512
- Connections: 1/2" BSP Male & PE tube adaptor & 1/2" BSP Female & PE tube adaptor
- PE Tube Length (mm): 1000
- Replacement cycle: 3/6 Months
- Rated water Capacity: 3.5 l/m
- Standards: BS6920-1:2000 and/or 2014
Caliente 3-in-1 Tap meets the following standards
EMC: EN 55015: 2013+A1: 2015; EN 61547: 2009; EN 61000-3-2: 2014, EN 61000-3-3: 2013
LVD: EN 60335-2-35: 2002 + A1: 2006 + A2: 2011 EN 60335-1: 2012 + A11: 2014; EN 62233: 2008
Shipping: Can ship only within Mainland United Kingdom
Code:
000206-215-52
