Caliente 3 in 1 Chrome Square Spout Boiling Water Tap Inc Filter & Boiler

Price £590.00 inc. VAT

Code: PDT-000089

Add to Basket

Caliente 3 in 1 Chrome Square Spout Boiling Water Tap Inc Filter & Boiler

CLICK TO VIEW LARGER IMAGE

Out Of Stock - Please See Alternatives

Description

Caliente 3-in-1 Square Spout Chrome Boiling Hot Water Tap

The Caliente 3 in 1 Boiling Hot Water Kitchen Sink Mixer Tap features a high quality Chrome finish and dispenses both standard hot & cold water as well as filtered boiling hot water. Good design often means as little design as possible - paring down to only the essential elements required to achieve the desired effect. The principle of ‘simplicity by design’ is that a good design solution is the most simple solution to the design problem. Caliente products deliver great results and looks great by simply adhering to this principle. The Instant Boiler Tap is functional, easy to use, fit and maintain. It comes complete with an easy to replace carbon filter. The filter comes complete with fixtures and fittings and when ready for replacing it takes seconds: just a quick twist, pull & replace.

Provides hot, cold and boiling water in one tap

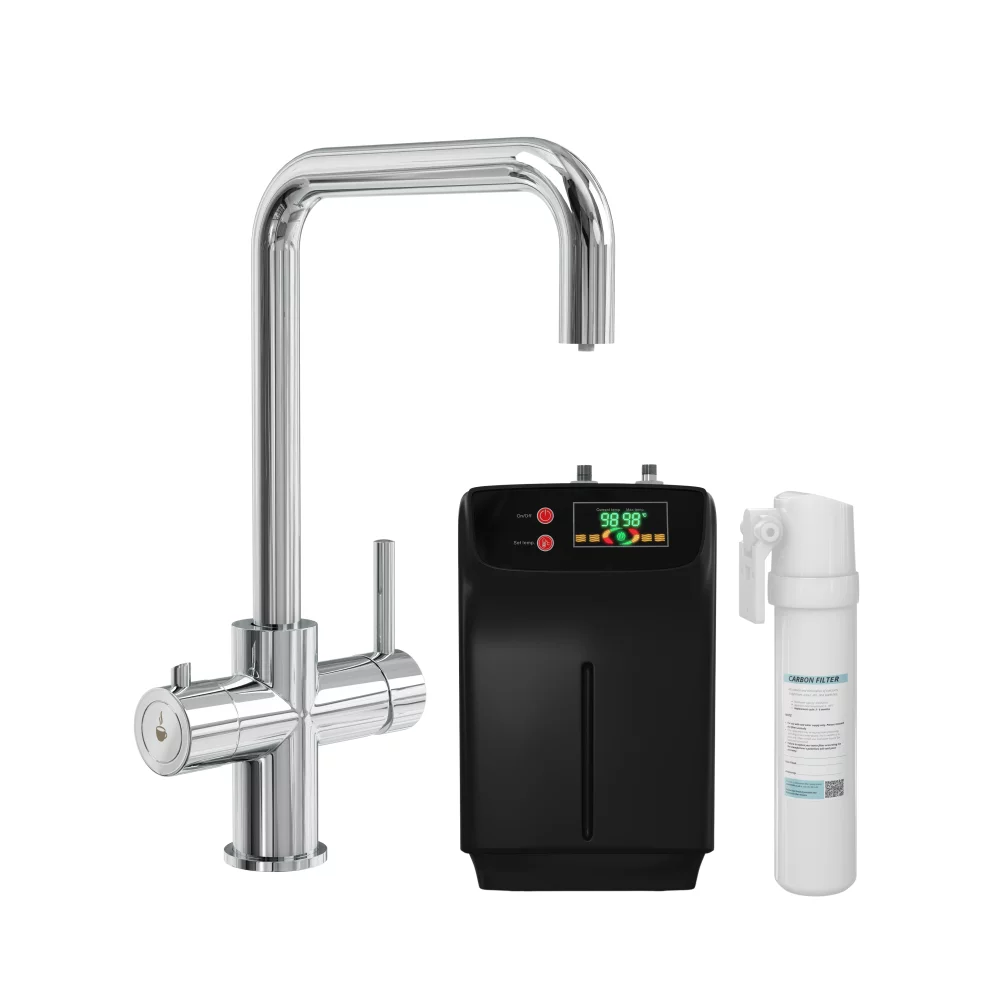

Includes Tap, boiler unit and filter
Hot & cold mixer lever handle for regular mains supplied water
Precision engineered brass construction to the highest standard with individual human hand testing.
In-built hydro-aerator for hot & cold mains supplied water.
Child-safe, double spring loaded; redundancy based boiling water safety handle.
Cool-to-touch self-insulating technology integrated into each 360 degrees swivel spout.
High Quality Chrome Finish

Calinente Tap specification:

Standards: BS EN 200:2008
Construction Material: Stainless Steel
Installation type: Deck Monted
Colour / Finish: Polished Chrome
Certification: WRAS
WRAS No: 2109055
Tap Tails Included
Minimum Working Pressure 1bar
Maximum Working Pressure 3bar
Cartridge Type 35mm
Swivel Spout: yes
Inlet Connection: 1/2” BSP Flexible Tails
Tap Hole Diameter: 35mm
Child Lock: Yes Spring lock mechanism
Hot Water Dispenser Handle: Left
Standard Hot and Cold Water Handle: Right
Height (mm): 364
Width (mm): 148
Length / Depth (mm): 235

Flow Rates

Standard water:

0.2bar (l/min) 3.8
0.5bar (l/min) 6
1bar (l/min) 7.2
2bar (l/min) 8
3bar (l/min) 9.2

State of the art boiling water tank technology

The secret to the success of the system is in the unassuming innovative boiler tank unit which discreetly slips away under your sink unit to do all the hard work. The compact stainless-steel tank is not under mains pressure, so the system is unvented and therefore no excess water is discharged to drain. The inner tank has several electrical safety features. A temperature sensor to give an accurate digital external reading of the current water temperature. A float sensor detecting the water level in the tank, this avoids dry start that would damage the boiler. An overheat stat to ensure the unit never overcooks.

Tank Features:

• The inner tank is fully insulated and energy efficient helping to maintain the tank temperature.
• Brushed stainless steel surround complimented with a smoked glass top that incorporates digital touch control and functional colour display.
• The appliance is supplied with a carbon rod filter designed for absorption and removal of calcium, magnesium, odour, dirt and particles, etc.

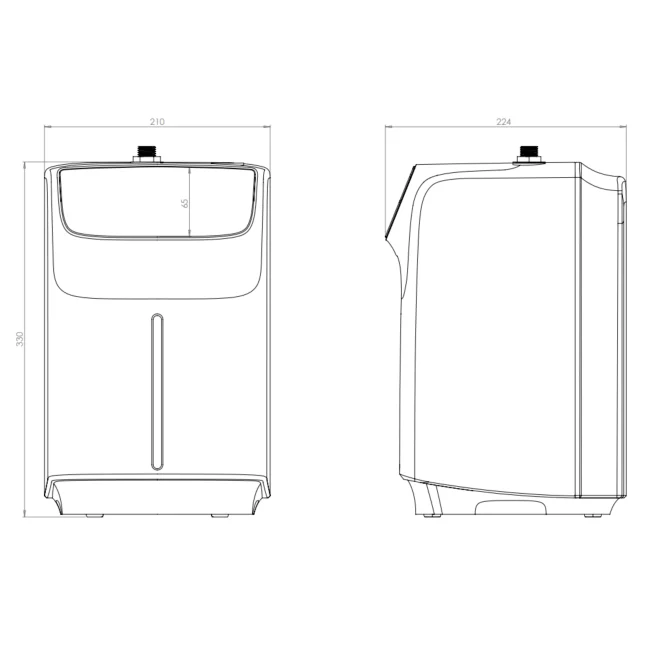

• Compact in design to fit discreetly into your base unit (Overall height 330mm, Width 230mm, Depth 210mm).
• Temperature adjustable from 75 - 98°C

Tank Specification:

Tank capacity: 2.4 Ltrs
Rated Input: 1.5kw
Rated Voltage: 220-240V ac, 50HZ
Standby Power: 2.2w
IPX Classification: IPX4
Static Bar Pressure: 1Bar
Dynamic Bar Pressure: 1.5 to 5Bar
Optimum working pressure: 1Bar Minimum to 3Bar Maximum
Plug Type: Fused 13A 3 Pin Plug
Power Cord Length (mm): 910
Function type: Touch screen digital interactive control
Temperature Control: 75°C to 98°C
Guarantee: 2 years
Height (mm): 330
Width (mm): 230
Length/Depth (mm): 210
Wras Approved 2203344
Connection 1: 1/2" BSP Male
Connection 2: 3/8" BSP Female to quick connection adaptor

Standards

EMC:
EN 55015: 2013+A1: 2015; EN 61547: 2009;
EN 61000-3-2: 2014, EN 61000-3-3: 2013

LVD:
EN 60335-2-35: 2002 + A1: 2006 + A2: 2011
EN 60335-1: 2012 + A11: 2014; EN 62233: 2008

Replace Filter Every 6 Months

To ensure the quality and safety of the dispensed water, the filter provided with the system must always be used and replaced at least every 6 months. Failure to do so may affect water quality and void the warranty.

Filter Specification
