Raychem Underfloor Heating

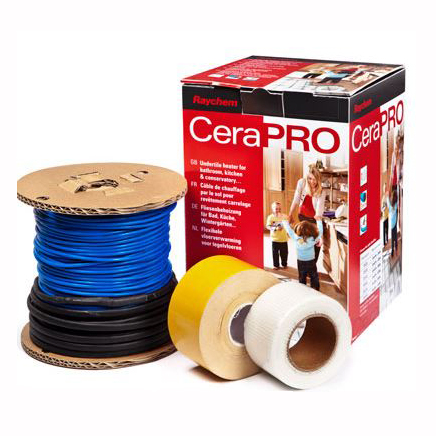

Raychem underfloor and undertile heating system is an electric radiant floor heating system for installation under Ceramic or porcelain tile, Granite - Marble (except cultured marble), Natural stone, Laminate wood flooring (floating only) and Engineered wood flooring (floating or glue down). Raychem underfloor heating is available is two quicknet versions, 90 and 160 and also available in a loose wire. Quick nets are perfect for fast installation in square rooms, where the loose wire is more suitable for rooms which shaped walls and or colums etc.

Raychem quicknet 90 - For wood substrait. The Raychem T2quicknet 90 is designed to be installed to a prepared wooded floor.

Raychem quicknet 160 - For solid surface substrait. The Raychem T2quicknet 160 is designed to be installed to concrete floors or woodfloor prepared with a suitable insulted tilebacker board.

All Raychem underfloor heating mats require a digital thermostat controller.

For optimum performance it is recogmended that all underfloor heating systems are installed on a suitable insulated tileback board or insultation matting.



Raychem Underfloor Heating

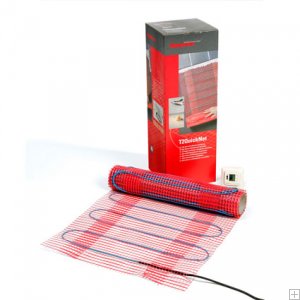

The QuickNet system provides targeted comfort heating in bathrooms, kitchens, entryways and other living areas. Raychem QuickNet's compatibility with all standard sub-flooring materials, and its low 3/16 inch (3mm) profile, make it ideal for renovation projects. The QuickNet radiant floor heating system includes a blue heating cable woven into an adhesive-backed red fiberglass mesh that allows for simple roll-out installation without worrying about heating cable spacing. The floor heating mats are pre-terminated for use 240 V. The QuickNet floor heating mats emit no measurable electromagnetic fields due to the shielded dual conductor design. This dual conductor cable requires only one cold lead connection making it easy to layout and install. The cold lead is a black non-heating cord that runs in the wall and connects the system to the thermostat.

Additional information regarding Raychem QuickNet electric radiant floor heating systems:

  1. For laminate and engineered wood flooring, please refer to the wood manufacturer's recommendations to determine which species are approved for use with radiant electric floor heating systems
  2. Mats are available in various lengths of 20-inch widths
